Working Principle

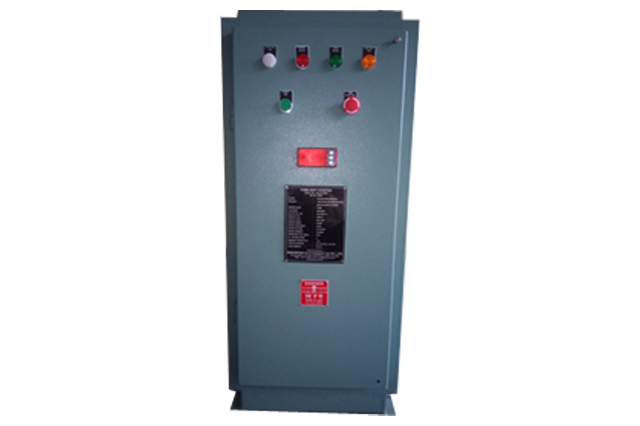

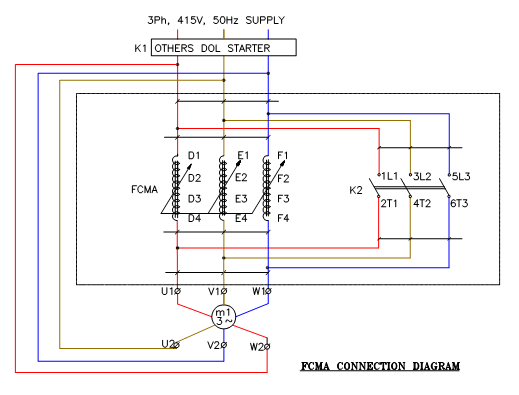

Flux Compensated Magnetic Amplifier soft starters are step less reduced Voltage starters which ensure a constant low starting current with incremental voltage and torque to the motor to achieve smooth acceleration of the drive. The FCMA Soft Starter is connected in series with the motor either in Line or in Phase and thus controls the starting current and starting torque As the motor speed increases the FCMA impedance decreases to achieve incremental voltage and torque for the motor while keeping the current constant. The voltage across the motor increases smoothly from starting to run value with motor speed. A built-in bypass contactor closes to ensure full voltage running of the motor. Bypass contactor operation can be time, Current or speed based. Low Voltage FCMA Soft Starters are designed and manufactured and tested in line with relevant clauses of IEC standards. The applicable standards are IEC60071-2, IEC60060-1, IEC 62271-1, IEC60076 clause 3.1.5, IEC 60289.
